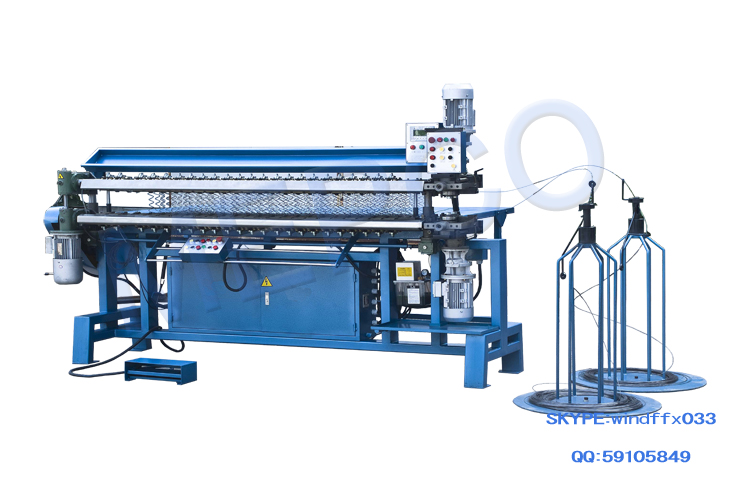

Mattress Making Machine-Bonnel Assembly Machine
详细信息
Technical characteristics:
Work Efficiency: 60-80 mattresses/8 hours
Maximum width of the spring unit: 2000mm
Spring unit height:80-190mm
Special design height:190-210mm
Spring wire diameter:Φ1.9-Φ2.4mm
Helical wire diameter:Φ1.2-Φ1.5mm
Applies to spring-caliber :Φ65-Φ95mm(different jaws accordingly)
Power supply:3 phase 380V /50HZ 3KW
Weight:950kg
Overall Dimension:3150x1730x1810mm
Work Efficiency: 60-80 mattresses/8 hours
Maximum width of the spring unit: 2000mm
Spring unit height:80-190mm
Special design height:190-210mm
Spring wire diameter:Φ1.9-Φ2.4mm
Helical wire diameter:Φ1.2-Φ1.5mm
Applies to spring-caliber :Φ65-Φ95mm(different jaws accordingly)
Power supply:3 phase 380V /50HZ 3KW
Weight:950kg
Overall Dimension:3150x1730x1810mm
Mattress Bonnel Spring Machine
